9500ci: Escort 9500ci STEALTH radar detector / laser jammer / GPS

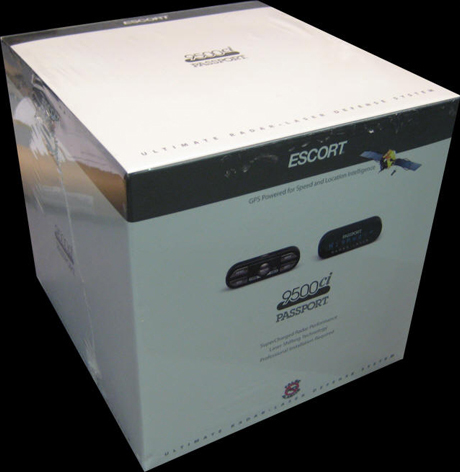

Escort 9500ci STEALTH installed radar detector with laser jammer - $2395

Escort 9500ci installed 100% Stealth Radar Detector with Laser Jammer.  Based on the same antenna design as the Beltronics STI and Beltronics STI-R but with integrated GPS for reduction of false alert and an inbuilt Laser Jammer. This is the ultimate wide band 100% Stealth and fully installed system. Undetectable by all police radar detector detectors, 100% stealth. Escort own and manufacture Beltronics radar detectors. Escort 9500ci builds apon the Beltronics STI-R with the added protection of a laser jammer and GPS reduction of false radar alerts.

The PASSPORT 9500ci is the ultimate custom-installed radar and laser defence system. With blistering all-band radar protection and precise 360 degree laser "shifting" technology, speeding tickets can be a thing of the past. ESCORT continues to lead the industry by incorporating its patented GPS technology that automatically identifies the source and location of all radar signals. Real threats are processed in less than a second, while false signals are learned and eliminated. Now all you have to do is drive! It also comes pre-loaded with thousands of Safety Camera locations, (red light and fixed speed cameras) throughout the U.S. and Canada and can be updated via the internet (Australian database pending.)

The PASSPORT 9500ci is completely undetectable to all radar detector detectors, keeping you unseen and unnoticed. Crystal-Clear Voice Alerts, Speed Alert™, Safety Warning System and its stealth installation make the PASSPORT 9500ci the ultimate in discreet protection.

The PASSPORT 9500ci comes complete with owner's manual and installation guide, separate miniature controller and text display, front-mounted radar receiver, twin front-mounted laser receivers/shifters, rear license plate mounted laser receiver/shifter, 12-volt interface module, GPS antenna, 12-volt amplified speaker, display bezel, bi-colour LED, and all mounting hardware. There is nothing else like it.

• Download 9500ci user's guide

• Download 9500ci installation guide

Features: Escort 9500ci stealth installed radar detector with GPS & laser jammer

• Ultimate in custom-installed discreet protection
• Precise Laser Shifting Technology* - 360 degree protection
• Blistering All-Band Radar Protection
• Completely undetectable to all Detector Detector Scanners
• New Variable-Speed Radar Performance
• New AutoLearn Feature
• New GPS-Powered Truelock™ Filter
• New Mark Location Features
• New Adaptive Signal Processing
• New Speed Alert™
• New Crystal-Clear Voice Alerts
• Database Compatible (Safety Cameras)
• User-Selectable Preferences
• High-Resolution Brilliant Blue Display
• 5 Levels of Brightness Control
• Mute, AutoMute & SmartMute
• Safety Warning System - 60 specific safety messages

The PASSPORT 9500ci comes complete with a comprehensive owner's manual and installation guide, separate miniature controller and text display, front-mounted radar receiver, twin front-mounted laser receivers/shifters, rear license plate mounted laser receiver/shifter, 12-volt interface module, GPS antenna, 12-volt amplified speaker, display bezel, bi-colour LED, and all mounting hardware.

Escort 9500ci Specifications

Operating Bands

* X-band 10.525 GHz ± 25 MHz

* K-band 24.150 GHz ± 100 MHz

* Ka-band 34.700 GHz ± 1300 MHz

* Laser 904nm, 33 MHz Bandwidth(Optional Laser Shifting)



Programmable Features

* Power-On Indication

* Signal Strength Meter

* AutoMute (On / Off)

* Voice (On / Off)

* Units (English / Metric)

* Radar / Laser Bands

* Highway

* Auto

* AutoNoX



Auto Calibration Circuitry

Mute / AutoMute / SmartMute

Completely Undetectable to all Detector Detector Scanners

Automatic and User Selectable
Sensitivity Control


Power Requirement

* 12VDC, Negative Ground



Radar Receiver

* Dual LNA Microwave Receiver

* Superheterodyne, Varactor-Tuned VCO

* Scanning Frequency Discriminator

* Digital Signal Processing (DSP)



Laser Detection

* Quantum Limited Video Receiver

* Multiple Laser Shifters



Display Type

* 280 LED Matrix / Text

* SpeedAlert™

* Bar Graph

* ExpertMeter™

* SpecDisplay™

* 5 Brightness Levels, including Full Dark



Dimensions (W x D x H inches)

* Display: 1.950 x 0.666 x .0.627

* Control: 1.950 x 0.425 x .0.650

* Radar Receiver: 3.680 x 4.120 x 1.200

* Front Shifters: 3.760 x 1.660 x 0.677

* Rear Shifter: 5.99 x 0.930 x 0.650

* GPS: 1.952 x 2.699 x 2.940

* Interface: 2.850 x 0.810 x 2.940

* Speaker: 2.250 x 2.116 x 2.250

Escort 9500ci STEALTH installed radar detector with laser jammer - $2395
